System Requirements

This section lists the hardware and software required for installing and using SAP Central Finance Master Data Replication by insightsoftware for SAP S/4HANA9.0.

Important: Ensure that you have the latest service packs and updates for Master Data Replication9.0 and related products.

Hardware Requirements

The following table lists the hardware requirements for the Master Data Replication application server.



Small enterprise

(5 Million line items/month)

Medium enterprise

(30 Million line items/month)

Large enterprise

(60 Million line items/month)

CPU Cores

4

6

8

RAM (GB)

16

24

32

Disk Space (GB)

100

150

250

The actual number of CPU cores, amount of RAM, and disk storage can be determined in collaboration with insightsoftware consultants during the implementation planning process.

Software Requirements

The software requirements are as follows:

  • ERP: One of the following source systems:
    • Deltek Cospoint 7.1
    • Epicor iScala 2.3
    • IFS Applications 8
    • Infor Baan 4.0
    • Infor CloudSuiteTM Industrial (SyteLine) 9.01
    • JD Edwards EnterpriseOne 9.2, 9.1 on Oracle Database
    • Microsoft Dynamics AX 2012
    • Microsoft Dynamics GP 2018
    • Microsoft Dynamics NAV 2016
    • Microsoft Dynamics SL 2015–Business Essentials Version 9.0.0.0
    • Microsoft Dynamics 365 Finance and Operations 10.0.35
    • Microsoft Dynamics 365 Business Central 19.1
    • Oracle E-Business Suite Release 12.2.9, 12.2.8, or 12.2.6, or Oracle E-Business Suite 11i
    • Oracle PeopleSoft 9.2
    • QAD Standard Edition (SE)
    • SAP ERP Central Component 6.0 EHP 8
    • 1C:Enterprise 8.3.19.1229; Configuration BAS 2.1.17.2
    • SAP S/4HANA
    • Workday 33
    • Flat file data
  • For Microsoft Dynamics 365 Finance and Operations source system:
    • One-box development environment
    • Azure SQL Database
  • SAP S/4HANA
    • On-Premise: 2025, 2023
    • Private Cloud Edition: 2025, 2022, 2021, 2020, or 1909

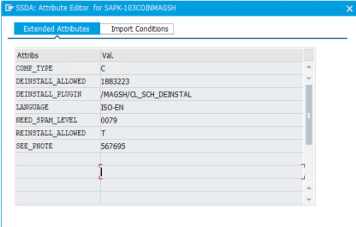

      • The extended attributes for SAP S/4HANA 2022 must be as shown in the following screenshot.

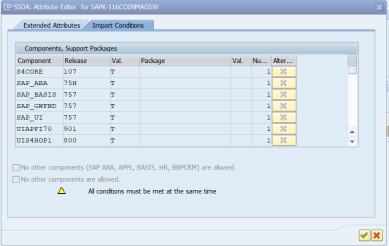

      The import conditions for SAP S/4HANA 2022 must be as shown in the following screenshot.
  • Client tool: One of the following client tools, or a client tool that is compatible with the databases in your environment:
    • Oracle Client 12.1.0.2 or 11.2.0.4
    • SQL Server 2014 Service Pack 3
    • Interactive SQL 16.0.0
  • Software framework: .NET Framework 4.8
  • Operating system: Windows 10, Windows Server 2019, Windows Server 2016, or Windows Server 2012 R2
  • Microsoft Excel 2016 or 2013 (required only if you are using the data editor functionality or to open Excel files)
  • Staging database: One of the following databases for staging tables:
    • SQL Server 2019, SQL Server 2018, SQL Server 2014 R2, or SQL Server 2012 R2
    • SAP HANA 2.x or 1.x
  • ETL tool: One of the following ETL tools:
    • SAP Data Services 4.3 with SAP Information Platform Services 4.3
    • SAP Data Services 4.2 SP14 (on Windows Server 2016 or Windows Server 2012 R2) with SAP Information Platform Services 4.2 SP8
    • SAP Data Services 4.2 SP13 (on Windows Server 2016 or Windows Server 2012 R2) with SAP Information Platform Services 4.2 SP7
    • SAP Data Services 4.2 SP10 (on Windows Server 2016 or Windows Server 2012 R2 or Red Hat Enterprise Linux 6.7) with SAP Information Platform Services 4.2 SP5
  • Elasticsearch 6.6.1
  • PostgreSQL 10.x

    Note: While you can download Elasticsearch and PostgreSQL from their official websites, the steps to install and configure the software are provided in the installation guide.

  • Internet Information Services (IIS) 10.0 or 8.5. Ensure that Web Deploy is enabled.
  • (Only 64-bit) Java Runtime Environment (JRE) 9.0.4 or 8. Ensure that,
    • JAVA_HOME environment variable is configured.
    • Master Data Replication and SchClient.jar are of the same version.

    Note: JRE is also required on the computer on which SchClient.jar is installed to run the .jar commands.

  • Web browser: One of the following web browsers:
    • Google Chrome 95.0.4638.69 (64-bit) or later
    • Mozilla Firefox 94.0.1 (64-bit) or later

Compatibility with Other insightsoftware Products

insightsoftware certifies that SAP Central Finance Master Data Replication by insightsoftware for SAP S/4HANA9.0 is compatible with SAP Central Finance Transaction Replication by insightsoftware 9.0.
